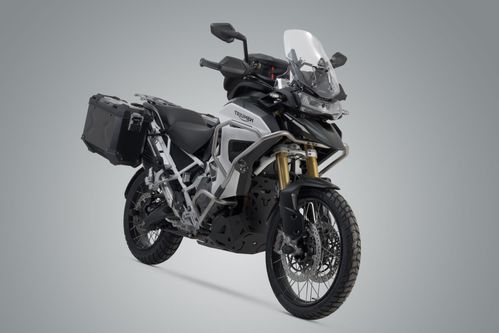

TRAX ADV aluminium case system Black. 45/37L. Tiger 1200 Rally / GT Explorer.

TRAX ADV L Aluminium case

• Model for the left side of the motorcycle
• Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
• Sturdy and watertight side case made from aluminium
• Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
• Robot-guided welding and self-piercing riveting prevent dampness from getting in
• Even when loaded, completely removable lid with quick-release fastener
• 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
• High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
• Hinges made from stainless steel, handles made from anodized aluminum
• Lid limiters provide additional stability when using extra luggage on the lid
• Exchangeable cover gasket
• The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
• Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
• Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
• A lock set with 6 identical locks is available as an option and is not included in delivery

• Details

• Material: Aluminum
• Material strength: 0,15 cm / 0.06 in
• Surface: powder coated
• Color: black
• Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
• Total Weight: appr. 5,4 kg / appr. 11.9 lb
• Total Volume: 0,0-45,0 l

• Note

• Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.

• Required for mounting

• Side carrier, adapter kit, TRAX lock set

TRAX ADV M Aluminium case

• Model for the right side of the motorcycle
• Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
• Sturdy and watertight side case made from aluminium
• Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
• Robot-guided welding and self-piercing riveting prevent dampness from getting in
• Even when loaded, completely removable lid with quick-release fastener
• 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
• High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
• Hinges made from stainless steel, handles made from anodized aluminum
• Lid limiters provide additional stability when using extra luggage on the lid
• Exchangeable cover gasket
• The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
• Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
• Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
• A lock set with 6 identical locks is available as an option and is not included in delivery

• Details

• Material: Aluminum
• Surface: powder coated
• Color: black
• Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in
• Total Weight: appr. 5,1 kg / appr. 11.2 lb
• Total Volume: 37,0 l

• Note

• Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.

• Required for mounting

• Side carrier, adapter kit, TRAX lock set

TRAX lock set with PRO anti-theft protection

• 9 matching locks
• With anti-theft protection for PRO side carrier
• Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
• One key for all locks

• Details

• Color: black
• Total Weight: appr. 0,5 kg / appr. 1.0 lb

Multi-tool key chain attachment

• Multitool as practical key chain
• Quick-release fastener opener for EVO and PRO side carriers
• Hex key (14 mm) - ideal for many motorcycle mirrors
• Hex keys in four additional sizes (8, 10, 12, 13 mm)
• Bottle opener
• Key chain eyelet
• With laser-etched SW-MOTECH logo

• Details

• Material: Stainless steel
• Surface: brushed
• Color: silver
• Total Weight: appr. 0,0 kg / appr. 0.1 lb
